Built on the Septentrio Mosaic X5 GNSS engine, NavX integrates centimeter‑level positioning with a 60 m high‑accuracy laser EDM.
The embedded high‑performance IMU ensures robust tilt compensation, delivering reliable results even under challenging conditions.
With its IP68‑rated housing, Nav X withstands dust, water, and the harshest field environments.
This multi-constellation GNSS RTK receiver supports all major satellite systems, including GPS, GLONASS, BeiDou, Galileo, QZSS, and NavIC. With 1760 channels, it processes all available signals to ensure you are always working with stable, high-quality data.
Powered by Septentrio’s mosaic-X5 module, the receiver incorporates several advanced protection technologies:
-
LOCK+ for resilience against strong vibration and rapid position changes
-
AIM+ for protection against GNSS interference, jamming, and spoofing
-
AMR+ (AMPE+) to minimise multipath effects
-
RAIM+ for integrity monitoring
-
IONO+ for mitigating ionospheric disturbances
The built-in AR set-out function provides a clear, intuitive workflow. When the user is far from the target point, the software displays the direction to follow. As you get closer, the AR camera activates and visually guides you to the precise position on the screen.
The receiver is equipped with a 2 W UHF Rx/Tx radio offering high efficiency and low energy consumption. It provides a secure and stable data link at distances of up to 15 km.
The NAVTRON IMU enhances your productivity with a highly accurate, calibration-free solution. It becomes operational within seconds, delivering fast, dependable tilt compensation

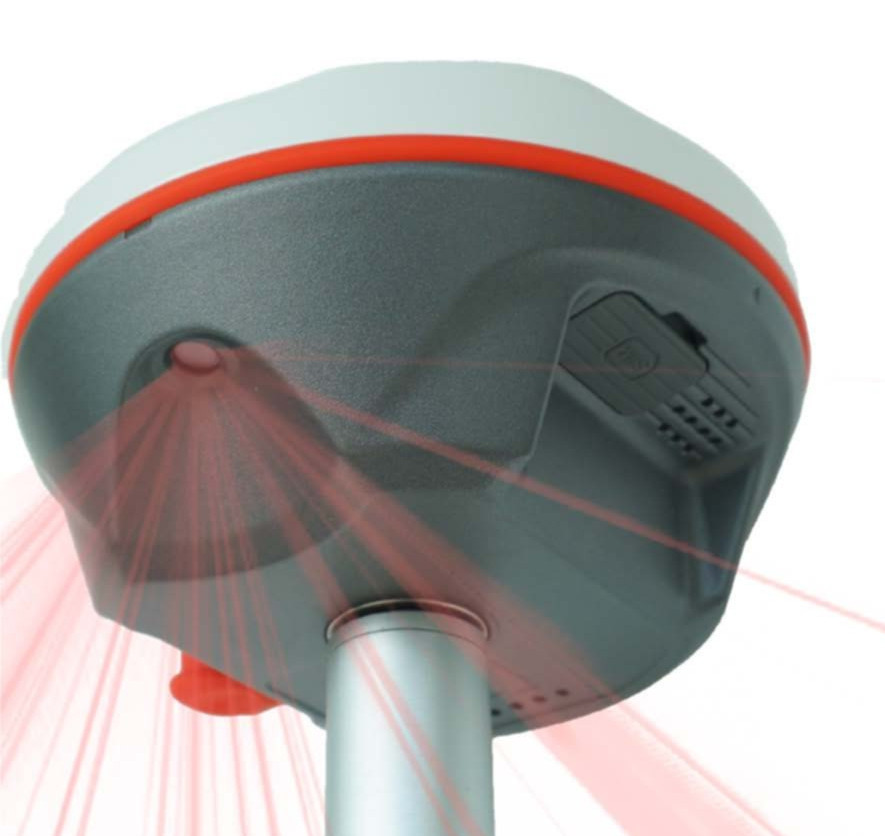

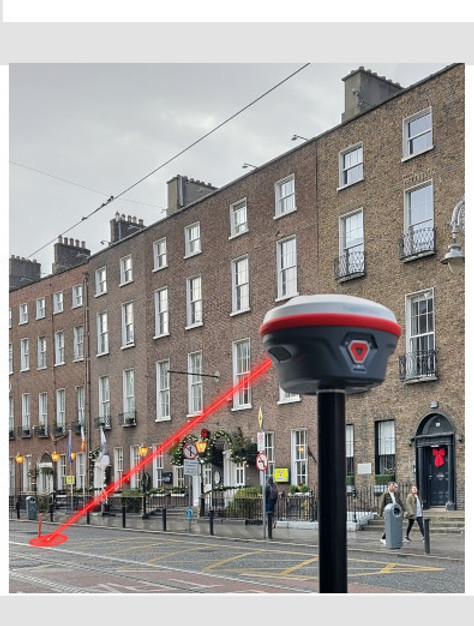

Measure, where no one else can. Centimeter-level positioning within 10m, measuring range up to 70m! Just aim with the red laser and store the position of the dot. You can use the laser for setouts as well!
The Navtron NavX receiver also comes with a built in IMU compensator. Thank to this function, surveying and setting out never was this easy!
A couple seconds and ready to seize the field. Up to 2 cm accuracy within 60 degrees.
It compensates within seconds, ready for seize the day.
